ImageBind: One Embedding Space To Bind Them All — paper explained

ImageBind: One Embedding Space To Bind Them All — paper explained
Photo by Sean Oulashin / Unsplash

Images are truly binding. An image of a beach, reminds the pleasant sound of the waves and when I simply say the words, “sunshine, sandy beach and drink” you would imagine same image with sunshine and you sitting in it with a drink. Its all simply because human mind not just receives information through audio, video, text or touch, but it also somehow aligns these modalities to build a mental map of all the perceived data.

Though there is abundance of data on the web these days generated by humans, only some are naturally aligned with images or videos. For example, video and audio are naturally aligned on the web with which we can train just a image-audio model. But what about other modalities like audio and text? So can we come up with a way to bind many modalities together with Images? This is exactly what the ImageBind paper addresses. It shows that the emergence of alignment between modalities called the emergent alignment and the results are quite promising. Without further adieu, lets dive deeper into ImageBind.

CLIP and Motivation for ImageBind

The idea of linking or connecting modalities at scale using web scale data was first established in the CLIP which stands for Contrastive Language Image Pre-training. CLIP takes text prompts and images as input and connects them semantically. It does this at web scale by training on 200 million image-text pair dataset called WebImageText which were fully gathered from the web without any manual labelling.

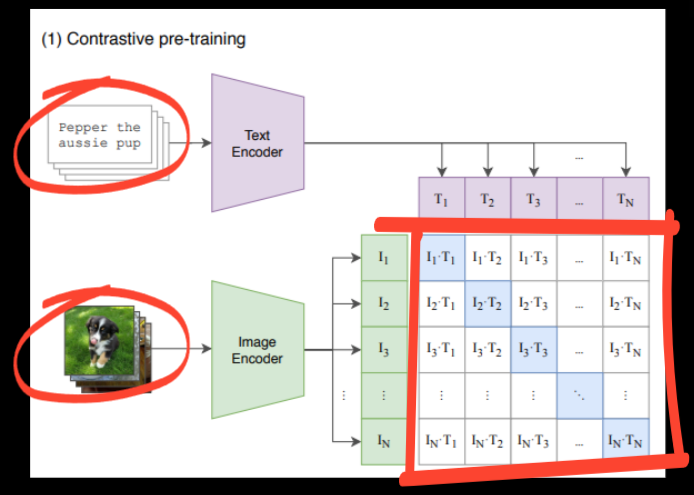

CLIP introduced contrastive learning which is to distinguish between positive pairing of the image and text versus negative pairing of image and text combinations (see figure above). This simple switch to contrastive objective made CLIP much more efficient compared to using a predictive objective of standard classifiers. The loss used was called the InfoNCE loss which maximises the similarity between correct pairs and minimises the similarity between incorrect pairs.

Similar to CLIP’s approach to leverage contrastive learning to pairs of modalities namely image and text, there have also been other works inspired by CLIP that pairs other modalities like audio with images namely, Audioclip which pairs audio and text. There are also ideas like Contrastive multiview coding which pairs images with depth. And there are also works like “Audiovisual instance discrimination with cross-modal agreement” which pair video and audio.

The biggest problem with these pairings is that one is not useful for the other. For example, a model pre-trained with image-text embeddings is not useful for audio. This exact problem is what is addressed by ImageBind.

Video Explanation

If you are more of a visual person, checkout the youtube video explaining the ImageBind paper here.

ImageBind and Multiple Modalities

ImageBind considers several modalities namely — image/video, text , audio, depth, thermal and IMU which stands for Inertial Measurement Unit and includes the accelerometer and gyroscope. The main goal of this work is to learn a “single joint embedding space for all modalities” and use images as the binding modality.

If I stands for images or videos and M stand for any other modality, then we use deep neural networks as encoders to extract embeddings from each of the modalities. There is a separate encoder for each modality. More specifically, they use variations of Vision Transformers for all of the encoders. For images and videos they use ViT-H and for text encoding they use OpenCLIP. For the audio they use ViT-B and for thermal and depth they use ViT-S.

During ImageBind training, the weights of the image and text encoder architectures are kept frozen and the weights of all other modalities are updated. Because these two models are frozen, they use a pre-trained models for encoding images and texts. This freezing ensures alignment to emerge between modalities for which we don’t have any natural alignment, for example, between audio and depth.

Because the inputs are in different forms, they do slight pre-processing before using them. For example, when dealing with videos, they sample 2 frames from 2 seconds of a given video. With audio, they convert 2 second audio clips into mel-spectrograms. Thermal and depth images are treated as 1 channel images. When it comes to IMU, it has accelerometer and gyroscope measurements which have a X, Y and Z dimension. They take a 5 second clip of the data and project using 1D convolutons which are fed once again into a transformer architecture.

The pre-processed inputs are then passed through the encoders whose outputs are then passed through a simple linear layer in order to ensure they are of the same dimension before being trained with a loss called the InfoNCE loss. Lets say the output of the image or video embeddings is q and the outputs from any of the other modalities is k. With that, lets look at the loss function.

Loss Function

The loss function InfoNCE looks a bit scary in the paper and its the modified cross entropy loss and it extends the idea of contrastive learning to multiple modalities.

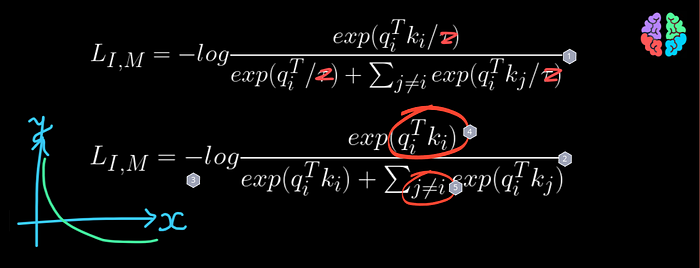

To understand it, I am going to simplify it by first stripping off the temperature tau which is trivial resulting in this simplified equation (see figure above). During training, we are going to optimize this loss to achieve a minima. The loss is a negative log function and a plot of negative log looks somewhat like this which indicates that in order to minimize the value of y, we need to achive high values of x. This means we need to increase the numerator and decrease the denominator as much as we can. The numerator is nothing but a dot product or similarity of embeddings from image modality q and any other modality k and its only for the positive cases as both q and k have the index i indicating they are positive pairs. The denominator on the other hand is the dot product of embeddings of negative cases which do not form a pair. So optimizing this equation brings the embedding of different modalities for the positive example closer together and pushes the negative cases far apart.

In terms of the embeddings, the loss brings closer the embeddings amd creates a joint embedding space to bind together all the modalities k with the image modality q. This ensures alignment to emerge between modalities for which we don’t have any natural alignment with and this is what they call the emergent alignment in the paper.

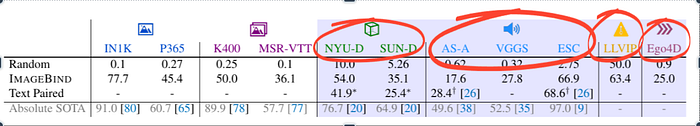

To demonstrate emergent alignment, they have chosen to show zero-shot classification of depth, audio, thermal and IMU using text prompts. You can notice that these datasets are aligned with images. But the results are shown for text prompting as input. So somehow the alignment between text and other modalities has emerged. Because ImageBind is so novel there is no real baseline to compare against.

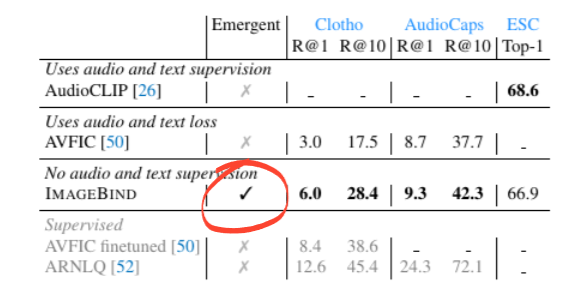

They also show that they are able to perform audio retrieval and classification without even training or fine-tuning with any audio data. What not, this is the only emergent approach and everything else is trained on specific audio data by some means.

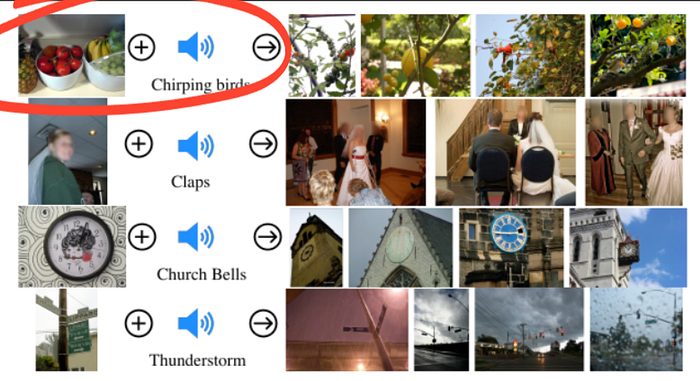

We also have the ability to do embedding space arithmetic where we provide an input image say, an image with berries and in the audio we say chirping birds and the output generated image seems to be that of birds sitting on berry trees and chirping.

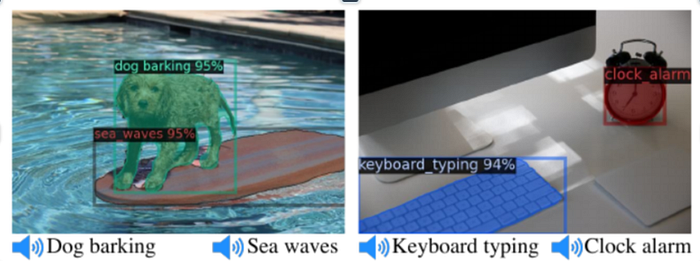

Last but not the least, they also show that objection detection can be guided with simple audio input by simply replacing the CLIP embeddings with the ImageBind embeddings leading to a object detector which is promptable with audio. It also comes without any further re-training of any of the models. There is also plenty of ablation studies they have included with the paper to show the impact of projection head of the encoder, the training epochs, and data augmentation of the paired images. I am not going into the details and I encourage you to take a look at the paper, the link for which I have included in the description of this video.


This is one of the works that I was much awaiting for. There has been great progress off late across the board in individual modalities such as text, images and audio. But there was not a single work that puts everything together to bind them all. At last it comes from Meta — ImageBind it is!
